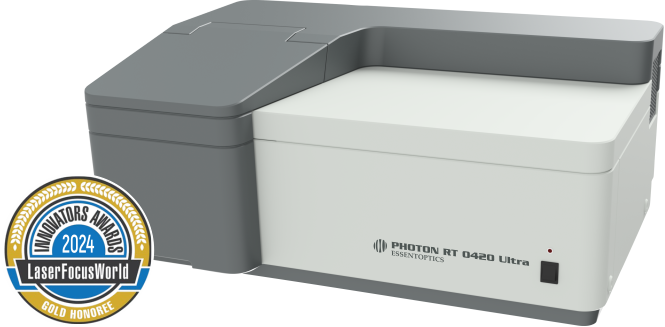

PHOTON RT 0420 Ultra Spectrophotometer
Laser Focus World 2024 Innovators Award: Gold Honoree
Category: Test and Measurent
Exceptional optical coatings demand exceptional metrology.
Unlock the power of precision with our latest PHOTON RT 0420 Ultra spectrophotometer.
Featuring an unprecedented 0.06 nm spectral resolution, the PHOTON RT 0420 Ultra delivers unmatched flexibility for performance qualification of cutting-edge filters. Its advanced capabilities enable broadband measurements down to OD8, with the ability to characterize slope steepness as small as 0.02%.
Designed to meet the rigorous demands of ultra coatings, the PHOTON RT 0420 Ultra features a wavelength range of 340nm to 2000nm and is tailored for a diverse range of coatings for advanced applications, including LIDARs, fluorescence microscopy, laser safety, telecom, space exploration, defense, and security.
Whether you are striving to produce exceptional optical coatings or planning to do so soon, look no further than our latest PHOTON RT 0420 Ultra spectrophotometer!
PRODUCT SPECIFICATIONS
| PARAMETER | DESCRIPTION |
|---|---|
| OPTICAL CONFIGURATION | |
| Optical scheme of monochromator | Double Additive Czerny-Turner |
| Optics | Mirror, protected Ag |
| Reference channel | Yes |
| Wavelength sampling pitch, nm | 0,01 to 100 |
| Spot size on the measured sample, mm | 4 x 3 |
| Photometric functions | %T, OD |
| Effective wavelength range, nm | 340 - 2000 |
|
Ultimate spectral resolution, nm 400-990 nm 990-2000 nm |
0,06 0,13 |
|
Wavelength accuracy, nm 400-990 nm 990-2000 nm |
+/- 0,02 +/- 0,04 |
|
Wavelength repeat accuracy, nm 400-990 nm 990-2000 nm |
+/- 0,01 +/- 0,02 |
|
Ultimate optical density, -log10(T) 340-420 nm 420-925 nm 925-2000 nm |
6 8 7 |
| Stray light level, % at 532 nm | < 0,000001 (1x10E-6) |
| Angle of beam divergence, deg | +/- 0,2 |
| Photometric accuracy |
(VIS) |
| Photometric repeat accuracy |
(VIS) NIST SRM 930e: 0.0004 Abs (1 Abs) NIST SRM 1930: 0.0001 Abs (0.33 Abs); 0.005 Abs (2 Abs) Determined using 0,1 second accumulation, maximum deviation for 10 subsequent measurements |
| Stability of baseline, %/hour | < 0,2 (one hour warm-up time) |
| Light sources | High energy plasma source, HgAr wavelength calibration lamp. All sources built-in and pre-configured |
| SAMPLE COMPARTMENT | |
| Standard sample stage (included) | Measurement of transmission of plano samples with size greater than 8 x 10 mm |
| Size of samples |
Min. 6 x 4 mm Max. sample size:
|
| INTERFACE, DIMENSIONS AND WEIGHT | |
| Interface | USB 2.0, Windows-based, English |
| File saving options | res (txt), xls, pdf, csv |
| Power consumption, Watt | 250 |
| Power input | 110-220 V, 50-60 Hz |
| Width x Depth x Height, mm (inches) | 820 х 545 х 360 (32 2/5" х 25 2/5" х 14 1/5") |
| Net weight, kg (lbs) | 55 (121) |
| Values measured after 60 minutes warm-up time | |
Cutting-edge optical filters with extremely steep transition slopes play an increasingly significant role in our lives. Although invisible to the average user, they are often critical components in both current and next-generation photonics instruments used in telecommunications, astronomy, fluorescence spectroscopy, LiDAR, and laser/Raman spectroscopy. Filters with sharp edges enhance contrast, minimize spectral overlap, increase sensitivity for clear signal separation, and optimize detector performance.
EssentOptics offers exceptional measurement capabilities for such filters using the Photon RT 0420 Ultra spectrophotometer. Below is an example of a nanoband filter with a bandwidth of just 0.57 nm. The signal transition from 80%T to 5%T occurs over a mere 0.2 nm, resulting in an impressive slope steepness of 0.03%.
A very low level of stray light, just one one-hundred-thousandth of a percent, combined with a strong signal, provides a default measurement capability for optical density values as high as OD8. The images below depict measurement results of a bandpass filter with high OD broadband measurement.
.jpg)
The PHOTON RT 0420 Ultra spectrophotometer not only successfully meets current metrology challenges but also inspires coating experts to design and produce sophisticated thin film stacks with very small bandwidth. With its powerful and user-friendly features, achieving success is no longer just a dream. The examples below demonstrate measurements of ultra-narrow bandpass filters optimized for the visible and near-infrared ranges.
The PHOTON RT 0420 Ultra spectrophotometer features a carefully designed additive Czerny-Turner double monochromator, offering an unparalleled spectral resolution of 0.06 nm.
An example below demonstrates the monochromator's ability to distinguish between two closely spaced wavelengths of the mercury doublet. The high spectral resolution of the spectrophotometer enables meaningful measurements of ultra-narrow bandpass filters with steep slopes and small bandwidth.
